Louet Sectional Warp Kit for David 3, Spring 2, Octado, Megado and Delta

Details

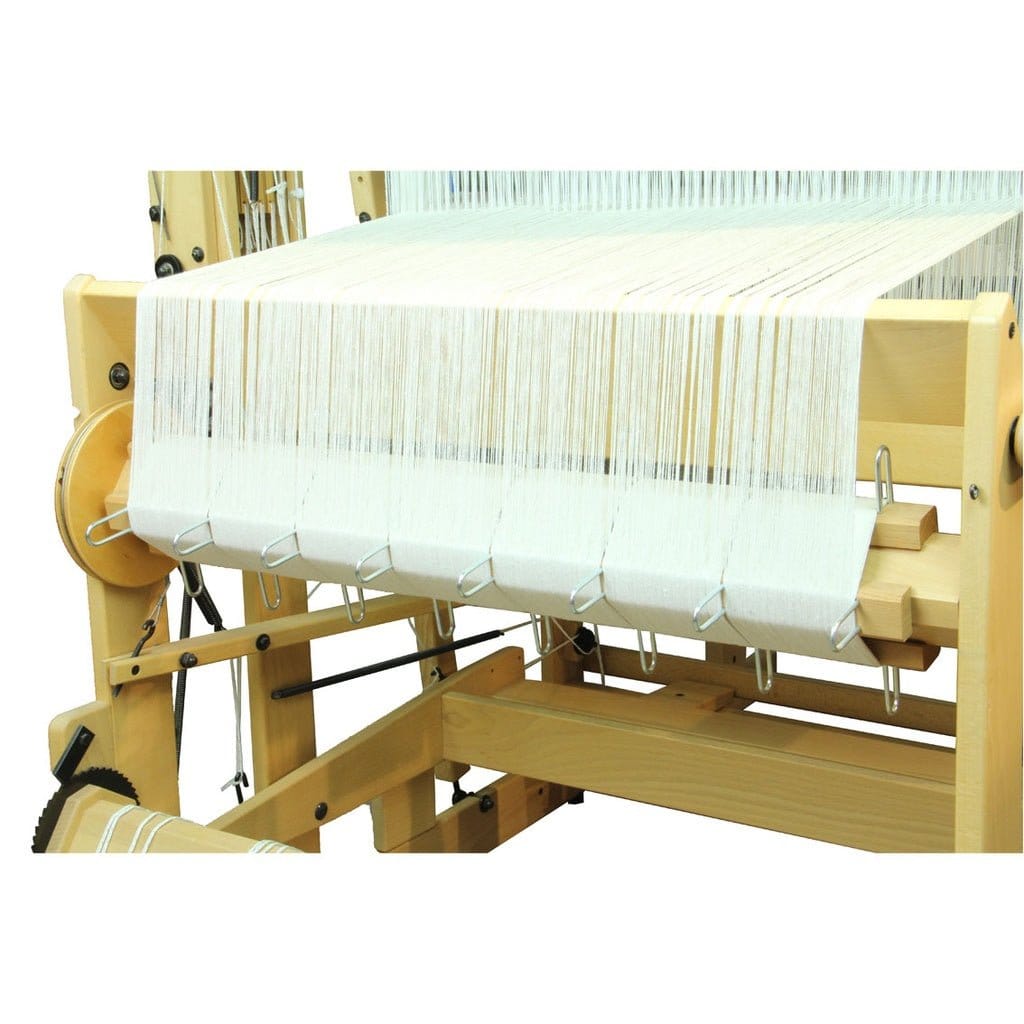

Turns the plain warp beam on your Louet loom into a sectional beam. Four wooden bars screw onto the narrow faces of the warp beam you already have, and a spacer clamped between each bar and the beam support lines them up so the sections sit exactly in step. The section clips squeeze into the holes in the bars, and short Texsolv cords hang the tie-on rod from the screw heads on the beam. There's no beam to swap, and the same kit fits the second warp beam on a David 3 or Spring 2.

Which width fits your loom

Match the kit to your loom's weaving width. The 130 cm Delta and Megado take the 130 cm sectional warp kit.

1 Inch or 2 cm spacing

If you figure your sett in ends per inch, take the 1 Inch kit. Its clips sit an inch apart, and you can leave clips out for 2 or 3 inch sections. The 2 cm kit is the metric version. Only put in the clips your warp width needs.

Winding the sections

There are two ways to fill the sections. With a bobbin rack and warp tension regulator, every thread in a section comes off its own spool and through the regulator on the back beam, and the regulator's counter tells you when the section has reached your warp length. Or wind a short warp chain for each section and beam it with the aid for sectional warping, which is the easier route when your color changes don't line up with the sections.

Not sure which width your loom is? Call or chat and we'll take care of it.
